Products

Automatic Manual Stabilizers

In view of demand of voltge stabilizers the electricfield started manufacturing of two types of stabilizers Manual and Automatic tap changing type. These designed and supplied to customers as per the applications required to avoid the damaging affect to the equipment. The input material and the componenets are of world-class quality and best workmanship accompanied by the latest infrastructure, which brings out a reliable and robust stabilizers.

Electricfield Automatic relay operating voltage stabilizers are only suitable for motorized equipment like refrigerator, Air Conditioner, Water cooler and other similar equipments.Electricfield Manual voltage are manually controlled from time to depending upon the voltage condition, which keep varying quite frequently.

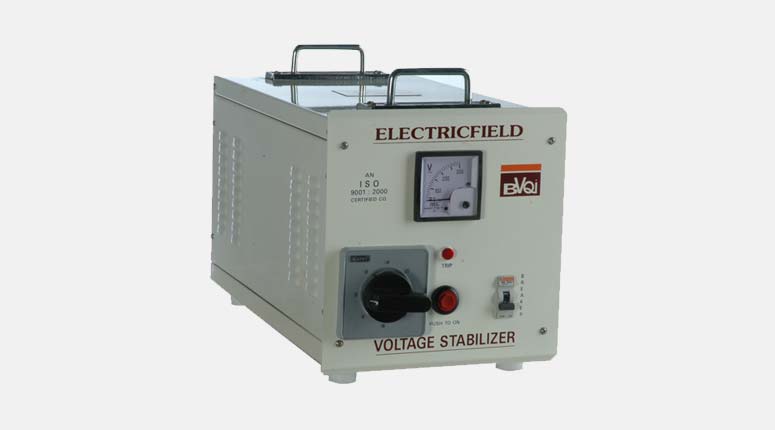

Manual Voltage Stabilizer

Electricfield Manual voltage are manually controlled from time to depending upon the voltage condition, which keep varying quite frequently. We suggest the following protections as optional components for the protection of the stabilizer as well as main load equipment.

Features:

  • MCB/MCCB/ACB on input as well as output against overload and short circuit / earth - fault protection.
  • Over voltage / under voltage protection.
  • Meters for voltage and load recording.
  • Single Phase Preventor (for motor load)
  • By pass switch.
  • Auto-Line / Auto Cut.
  • Indication lamp against fault.
  • Alarm scheme.

Specifications for Manual Voltage Stabilizers

Input Supply System Output Capacity
90 - 270v Single phase 210 - 240v 0.3KVA - 20KVA
150 - 470v 3 phase 4 wire 415v 380 - 440v 5KVA - 500KVA
260 - 450v 3 phase 4 wire 415v 380 - 440v 5KVA - 1000KVA

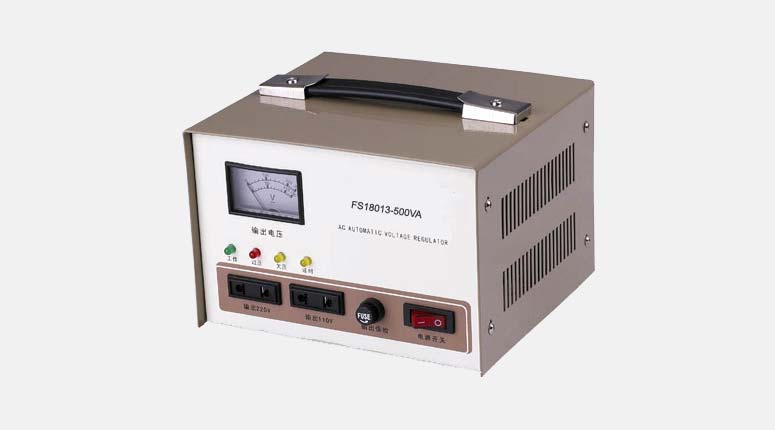

Automatic Voltage Stabilizer

Electricfield Automatic relay operating voltage stabilizers are only suitable for motorized equipment like refrigerator, Air Conditioner, Water cooler and other similar equipments. It should not be put to use for electronic equipments including lighting system by virtue of surges generated from switching of the relays from one step to another step frequently. Therefore, it is not recommended other than motorized application or else it can be used for all applications where low voltage remain at stable throughout the period of fluctuation once in a while. The automatic voltage stabilizers are also available with optional components similar to the one shown in the manual stabilizers for protection of stabilizers as well as machines/installation it is connected to.

Specifications for Automatic Voltage Stabilizers

Input Supply System Output Capacity
90 - 270v Single phase 200 - 240v 0.3KVA - 20KVA
150 - 480v 3 phase 4 wire 415v 350 - 415v 5KVA - 20KVA
300 - 450v 3 phase 4 wire 415v 370 - 440v 5KVA - 30KVA
