Our Products

With a modest start as Electrical Consulting Engineer to the Government Undertaking and Industrial Sector, it poineered into manufacturing of various electrical products used by Power House, Grid Stations, Industries and Commercial as Domestic utilities.

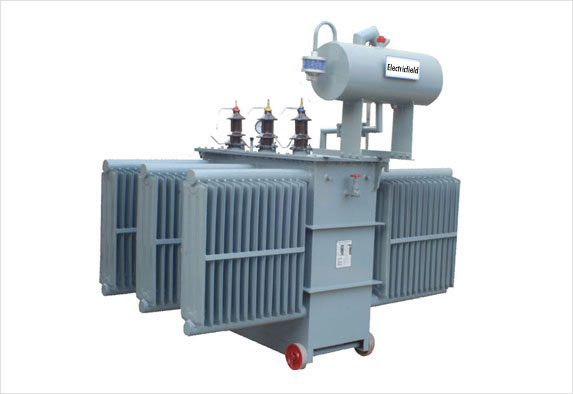

Distribution & Power Transformers

Electricfield Transformers incorporate most modern engineering concepts and high quality material processed under expert supervision and rigid quality control. Standard rating from 25KVA to 1000KVA in 11KV/433V for Distribution Transformers. Special rating 33000/433V for auxillary supply for Grid Stations are also available. We also manufacture Power Transformers ranging from 1.6 MVA to 10MVA with voltage rating 33Kv/11KV out door type with standard accessories and off load/on load tap changing arrangement as per customer's requirement. Electricfield also manufacture epoxy cast resin distribution transformers upto 500KVA with voltage range 11KV/433V. These transformers are designed for indoor application with off load standard taps to meet the input variations within the limit. more...

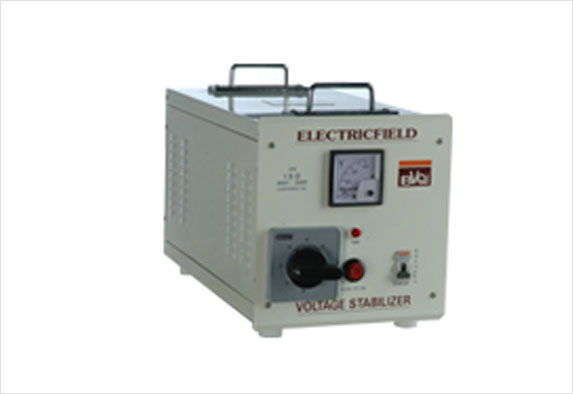

Automatic / Manual Stabilizers

Due to ever increasing demand of electric power much more than availability of power generated, it has caused over loading of distribution system beyond its rated capacity. This has resulted into alarming voltage drop in the transmission lines, right upto the customer premises all over the northern part of the country. The state of J&K being located at the tail end of the country is very badly affected due to low voltage on account of huge consumption of power with proportionally less availability of power of their own and bulk power being imported from northern Grid. Here in J&K state every house, every industry has to have voltage booster to make their machinery work, in factory, to work agricultural pump satisfactory. more...

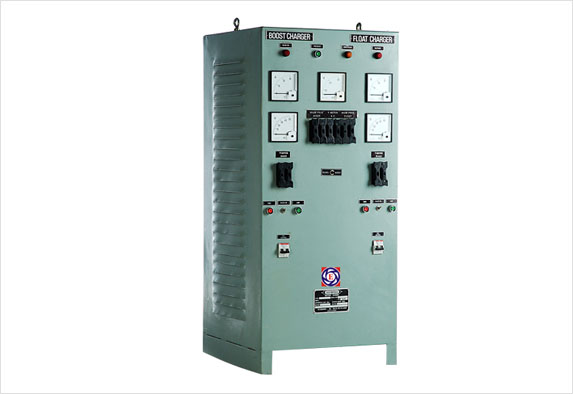

Battery Charger for DC Power System

DC Power through Battery coupled with battery charger is soul of control and protection of power distribution at Grid stations, Power houses and many other installations where stand by power is required in the event of non- availability of power from regular source. Electricfield offer complete system, which matches the requirement of DC load through Battery Chargers and DC Distribution system. The requirement of customers varies for the type of equipment being used in terms of DC voltage and load current. The load duty cycle profile keeping in view ampere-hours capacity of the battery charger is to be selected to maintain smooth continuous stabilized DC power. The design and manufacture of float cum boost mode for quick charging of the battery . more...

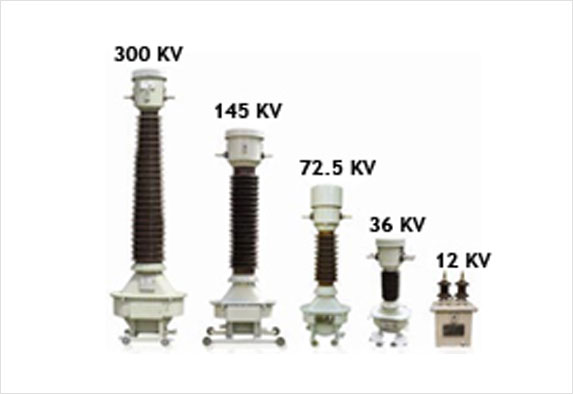

Indoor/Outdoor Instrument Transformers

The instrument transformers are measuring device for protection and metering schemes in any power system. The primary current or voltage is transformed to the required secondary usually 5A or 1A in case of current transformer and in case of voltage transformer 63.5V or 110Volts. Not only the accuracy of the transformer of prime importance, but also isolation function, which means no matter what the system, Voltage on the primary circuits. The secondary circuit needs to be insulated only for a low voltage. Electricfield Instrument Transformer are designed within permitted error as per the class of accuracy using best quality of electrical steel for the core and other associated material. more...

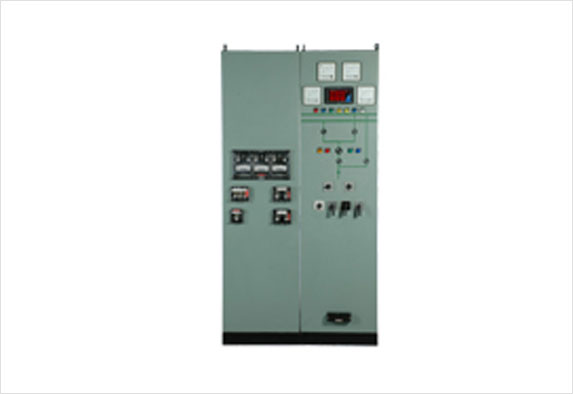

Control & Relay Panel

We would like to introduce ourselves as team of professionals engages in the manufacturing of simplex-Duplex control & Relay Panel for line, Bus Coupler and Transformer Protection upto 220KV systems.Electricfield Company came into existence in the year 1968 by a young Engineer after having served in the capacity of installation, testing and commissioning Engineer of high voltage equipment in the Foreign Multinational Company and had rich experience of in high voltage protection schemes apart from high voltage , outdoor/indoor switchgear equipment in various states in the country. The company started with well-versed electrical equipment including servicing of highly technical oriented jobs. more...

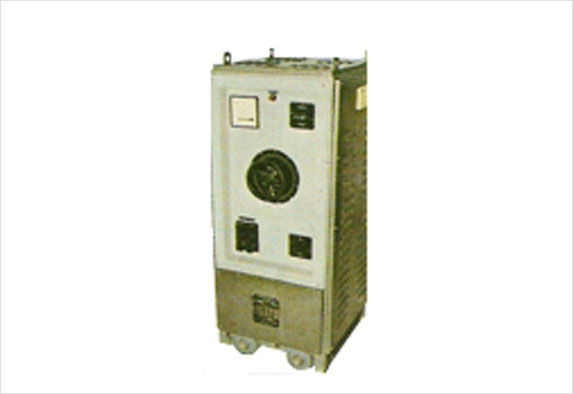

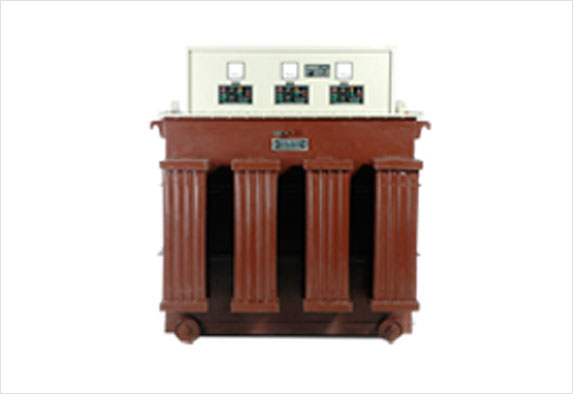

Servo Stabilizers

The low voltage phenomena have become permanent resulting phenomena feature in the country. All the industrial machineries, Agricultural pumps and domestic appliances including lighting which are designed as per IS standard voltage to give the desired/satisfactory output do not perform well, in fact get damaged at very low voltagecausing great loss to the highly sophiticated machines/installations in addition to loss of revenue due to stoppage of work. The Voltage problem has become so grim in the certain states, which is located at the tail end of the country where the power generated is synchronized with northern grid having voltage below than the normal. This affects the whole state with cascade affect of low voltage. more...

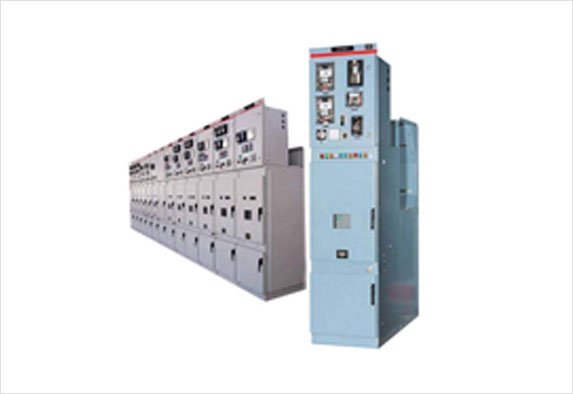

Vaccum Circuit Breaker Panels

VCBs consists of manual / motor operated spring charged mechanism of stored energy type. In the closed state of the breaker, the closing springs can perform the duty operation. Facility is also available for hand charging the springsin the event of supply failure. The closing spring is charged by the motor in less than 15 second. Electrical antipumping feature is also provided. Electricfield Switchgear offers H.V.Switchgear panels in metal clad enclosure fully extensible & with horizontal draw out vaccum circuit breakers (Single / multi lineup). These breakers are protecting the power transformers, HT capacitors bank, generators & feeders. These breakers are also used for starting the HT motors and and auto reclosing duty. more...

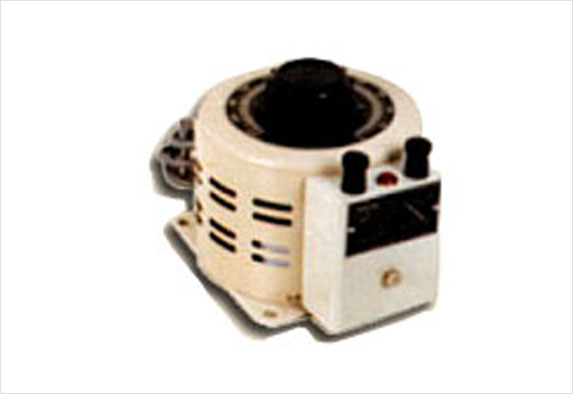

Power Glide Continuously Autovariable Transformer(Variac)

Power Glide is a steplessly and continuously variable voltage auto transformer manufactured by Electricfield. It has a single layer copper winding on the torodial core of high grade CRGO Silicon sheet. Once face of the winding on the top in case of air-cooled and side face in case of oil-cooled is finely evently ground / grinded for better contact with the carbon brush, which slides along with the same. A contact arm holding the carbon brush is fitted to a central shaft with control knob for operation. Any desired voltage with the maximum range can be achieved by adjusting the position of the brush by rotating the control knob. The calibrated dial provided reads approximate the output voltage at no load when the input is at its rated value. more...

All Testing Equipments

Electricfield Oil Test is designed for testing strength of Insulating oil. The sets are available for 0-60KV and 0-100KV voltage range in manual as well as motorized for uniform rise of voltage for noticing correct break down voltage. Electricfield Primary Injection Set is intended to carry out the testing after completion of installation especially if the protective gear is connected to the power line via a current transformer. Electricfield make Secondary Injection Testing Set is portable equipment suitable for testing of all types of over current and earth fault relay of 5 amps secondary or 1 amp secondary current.The test set is designed to provide evenly controlled current output as per the requirement. more...
