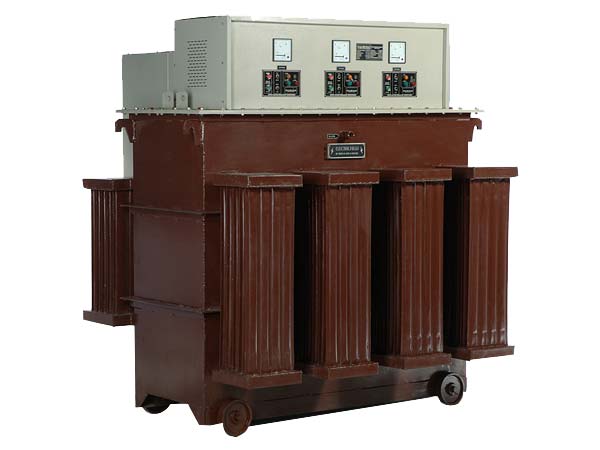

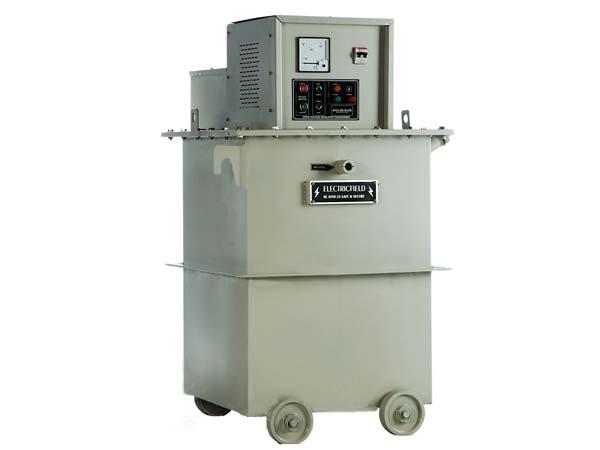

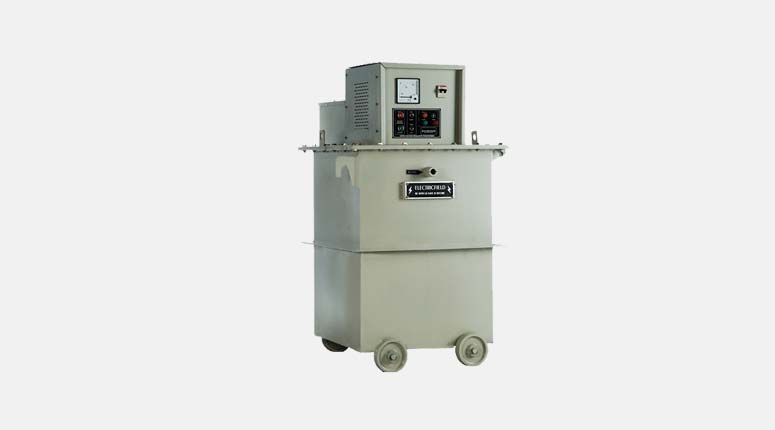

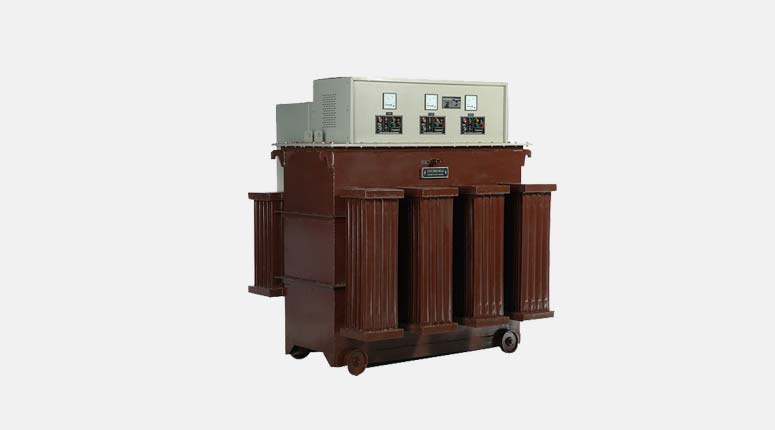

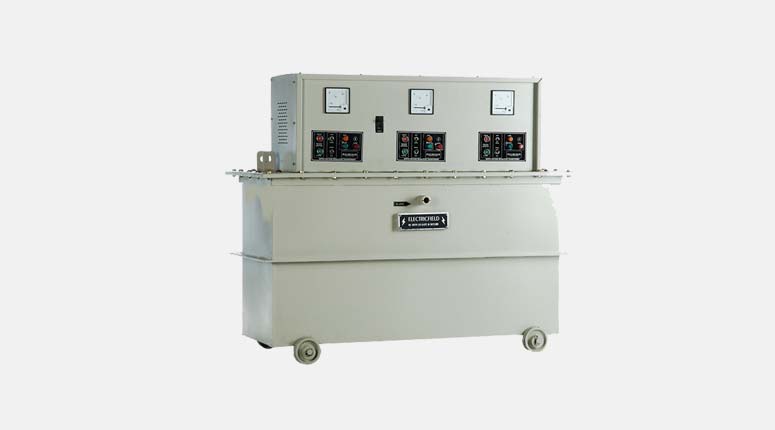

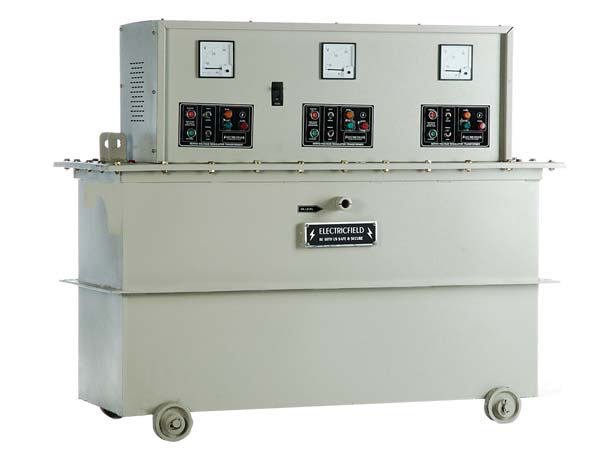

The Voltage problem has become so grim in the certain states, which is located at the tail end of the country where the power generated is synchronized with northern grid having voltage below than the normal. This affects the whole state with cascade affect of low voltage. The range of Electricfield Stabilizers has increased manifolds in turn of variety, capacity, voltage range, application including manufacturing with in-house manufacturing of critical components with specifications.
General Specification
| Input |
Supply System |
Output |
Capacity |
| 90 - 270v / 170 - 270V |
Single phase 230v |
230/240V |
1-100KVA & above |
| 150 - 470v / 300 - 470V |
3 phase 4 wire 415v |
400 - 415V |
1-200KVA & above |
| 4,000 - 7,000V |
3 phase 6,6000 V |
6,6000V |
100KVA & above |
| 7,000 - 12,000V |
3 phase 11,000 V |
11,000V |
500KVA to 10,000KVA |
| 24,000 - 36,000V |
33,0000 V |
33,000V |
1000KVA to 10,000KVA |
| Other Specification |
| Regulation |
+1% |
| Type |
Aircooled in smaller size & rest in oil cooled |
| Supply of frequency |
47-53Hz |
| Efficiency |
95% to 98% |
| Wave for distortion |
nil |
| Effect of load PF |
nil |
| Anbient temp |
Upto 45 degree centigrade normally |
| Humidity |
Upto 90% centrigrade normally |
| Environment |
Designed for indoor, tropical use, but can be designed for outdoor use on request. |
| Enclosure |
Normally IP23, but can be provided with other degree of protection on the request as per IS. |
| Service support |
Our organization is well equipped with efficient team, our own transport, tools and tackles to render you be service on your call. |
